Vehicle Dock for TOUGHBOOK Tablet

Model Numbers: PCPE-GJ33V01/02/03/04/05

An ergonomically designed vehicle docking solution for the Panasonic models CF-33 tablets only.

Offering full and lite port replication variations and optional dual antenna pass-through.

• The CF-33 tablet dock offers enhanced connectivity via two LAN outputs, four USB 2.0 ports; two of which are situated on the front of the dock, and two USB 3.0 ports.
• The design of the CF-33 tablet vehicle dock accommodates the device with a hand strap or extended battery pack.
• Designed for the Toughbook CF-33 tablet portion only

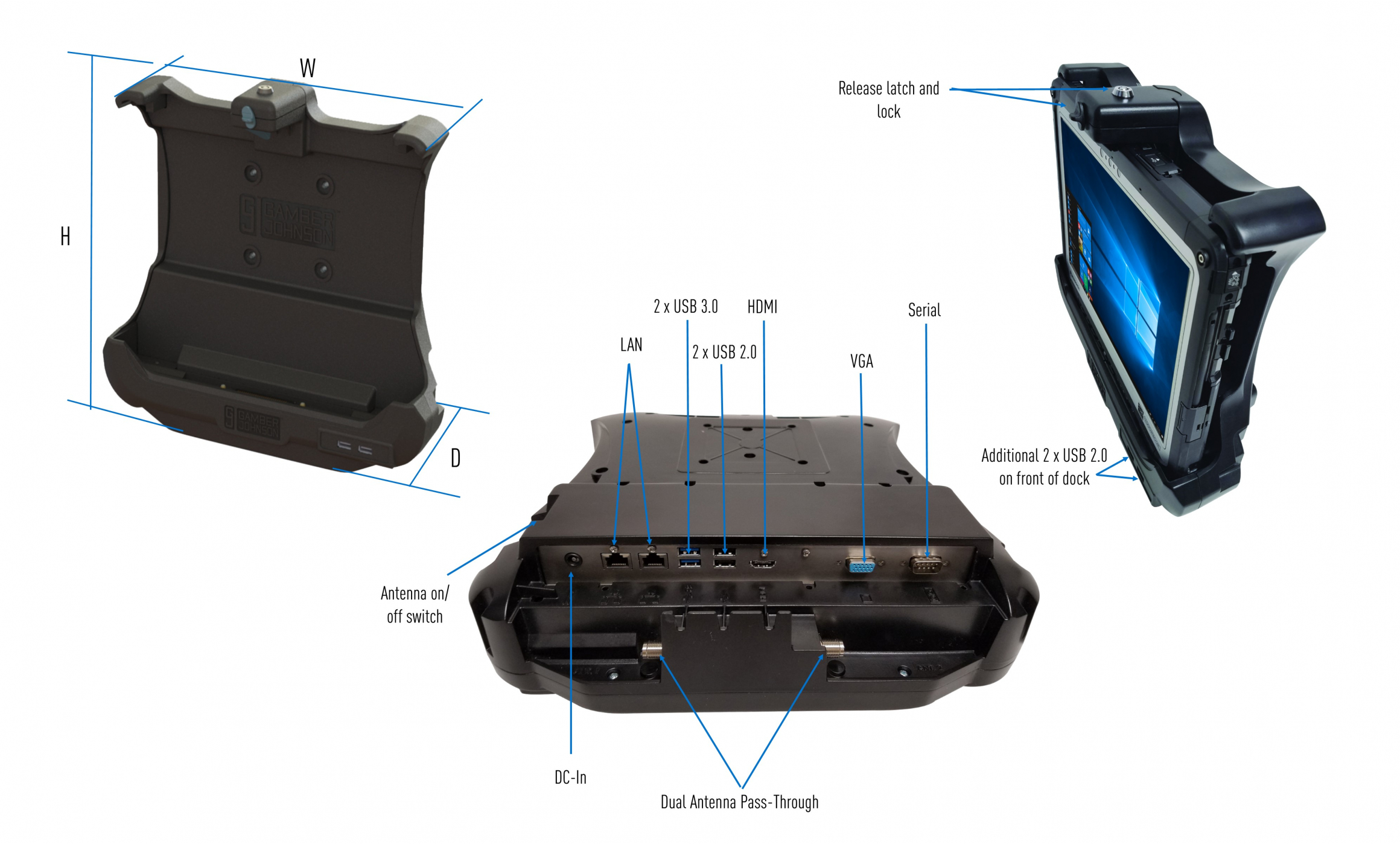

• Full port replication: 2 x USB 3.0; 4 x USB 2.0; 2 x LAN; HDMI; VGA; Serial; DC-in
• Lite port replication: 2 x USB 3.0; 4 x USB 2.0; 2 x LAN; Serial; DC-in
• Optional dual antenna pass-through
• Non-electronic version available (no ports)
• Can be mounted in horizontal or vertical position via VESA 75 mounting pattern
• Internal/protected circuit board protects agains dirt and dust
• Floating docking connector for reliable docking connection – tested to 30.000 cycles (not limited to)
• Keyed lock for theft deterrence
• Accommodates device with hand strap or extended battery pack
• Power supply not included
• 1 year standard warranty (pick up and return)
• 3 and 5 year Extended Warranty and Accidental Damage Warranty options available
