MDT661 – Android Rugged Mobile Phone

5.72″ Rugged Smartphone for Tough Field Work

The Topicon MDT661 is a full rugged IP67 rated mobile computer data terminal designed for tough field work, such as last mile delivery. The MDT mounted on the motorcycle help field worker on routing, navigation, order management, dispatching, etc.

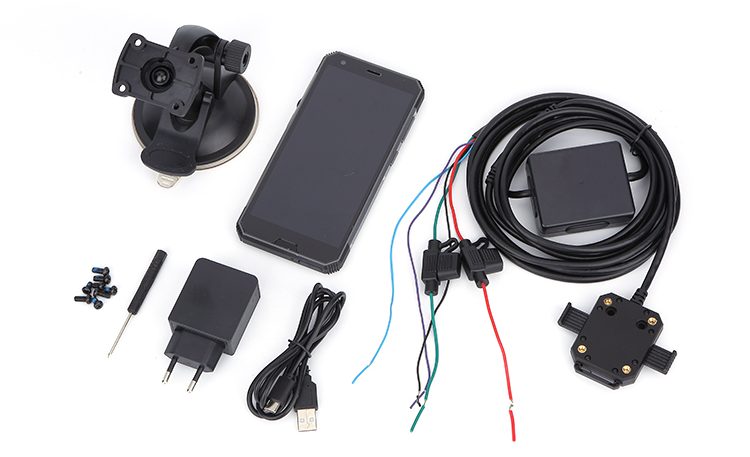

The device is equipped with a 5.72″ IPS HD display, with GPS, 2G/3G/4G network, WiFi, Bluetooth, camera, NFC, 4GB DDR RAM, 64GB eMMC flash ROM, dedicated cradle and cable.

Support hardware customization, MDM remote control server,  OTA upgrade, firmware customization, APK integration and debug log.

• CPU : MTK platform 2GHz Octa core CPU
• GPS ： Build in MTK GPS module
• Display： 5.72 inch IPS HD + Display, 1440×720 pixels 20:9 HD
• Bluetooth：V2.1 & V4.0
• WLAN： Yes, 802.11 ac/abgn
• Camera (back camera)： Real Dual 16/0.3MP, AF with flash LED
• Camera (front camera)： Samsung 8MP Front camera
• RFID： Yes, default
• G-sensor： Yes, default
• Light sensor： Yes, default
• GYROSCOPE： Yes, default
• Antenna： Internal antenna
• LED indicator： Two-color LED (Red/Green)
• Operating temperature : -10 to 60 degree
• Waterproof : IP67

Software

• Operating system : Android Version 9.0(default) or 11.0
• Android applications： TBD
• Navigation software： TBD

Packaging Details

• Size and weight : 159.6*78.5*11.2mm，274g
• 1pcs main unit and 1pc cradle

4G module / GPRS module

• 2G-GSM: 850,900,1800,1900
• 3G-WCDMA: B1,B2,B4,B5,B8
• 4G-LTE FDD:B1,B2,B3,B4,B5,B7,B8,B12,B17,B20
• 4G-LTE TDD:B40,B38,B41

Memory

• ROM (SLC/MLC) ：32G eMMC flash
• RAM (DDR)： 4GB
• Extend Slot： MicroSD ( TF ) card

Interface

• USB Connector： USB Type C
• SIM card slot：Yes, nano SIM

Battery

• Capacity： 4000mAh
• Standby： ~3.5 days
• Operating Time: ~5 hours
