NETCOM RCD
Low cost Passive and Passive Self-Pumping Dehydrators
This product is available from Milexia France, Milexia Iberica, Milexia Italia and Milexia UK
The ETI NETCOM RCD line of passive dehydrators keeps small volume waveguide and coax systems dry.
These dehydrators may also be used to supply short term protection for larger systems; during power interruptions, maintenance, storage, or transportation.
An RCD passive dehydrator contains a drying agent sealed in a pressure tight container.

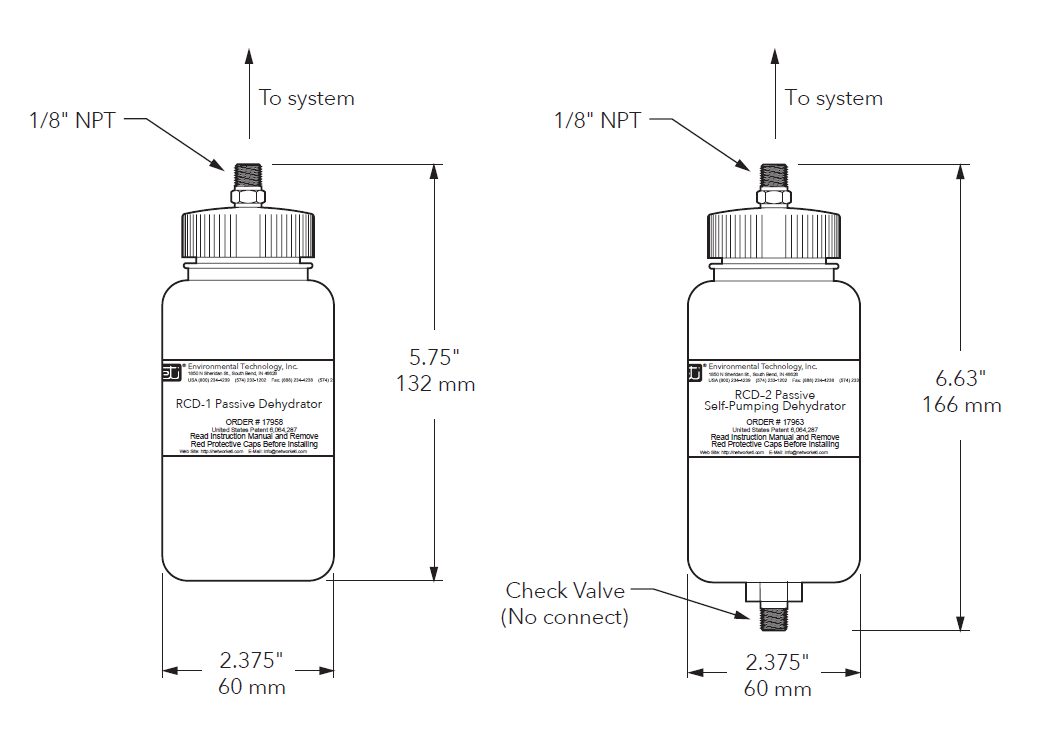

A 1/8″ NPT pressure fitting is provided for connecting to the system to be protected.
Gas diffusion ensures that the desiccant is exposed to any water vapor present in the system.
Unlike mechanically pressurized systems, an RCD passive dehydrator works best when the waveguide or coax system is tightly sealed.
- Keep waveguide and coax dry
- Low Cost
- Reliable
- No power required
- Long desiccant life
- Simple Installation
- Desiccant indicates when to regenerate/replace
- Self pressurizing (RCD-2, RCD-4, & RCD-6)
