Milexia – SemSurge
Protection Unit
This product is available from Milexia France, Milexia Iberica, Milexia Italia and Milexia UK

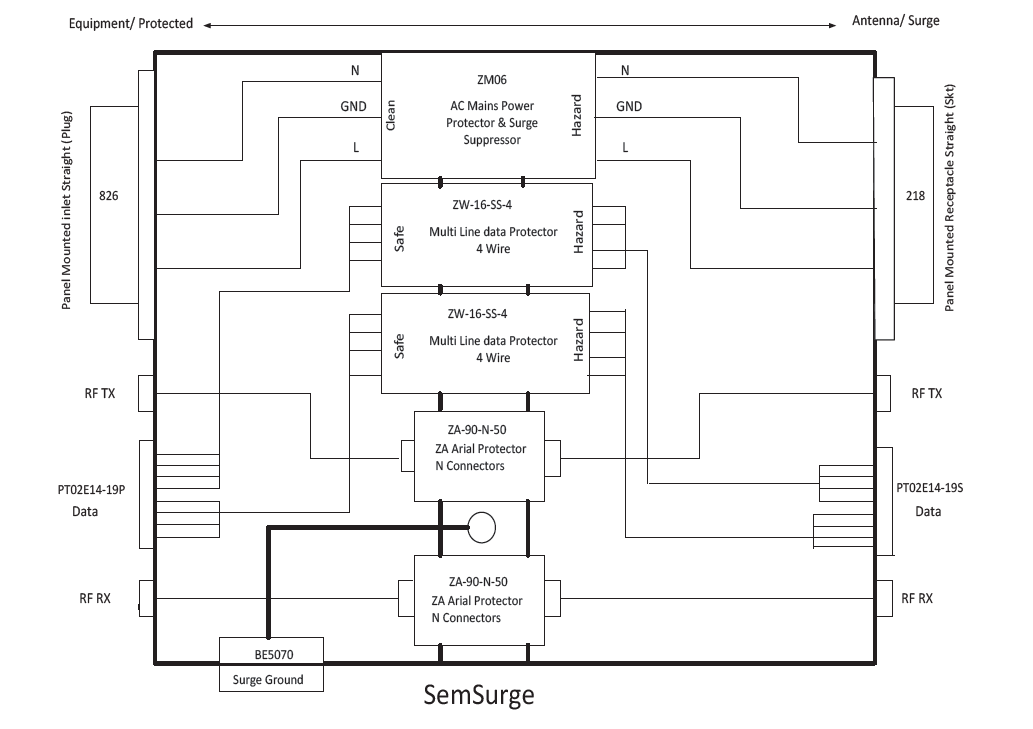

The SemSurge protection unit from Milexia connect to each end of cross-site cabling, providing equipment protection from lightning strikes.
Material / Surface Finish
- Enclosure and lid made from cast aluminium with neoprene cord seal
- Smooth spray finish similar to RAL 7001
Protection Category
- IP 66 to EN 60 529/10.91, NEMA 4 is met
Dimensions
- 200 mm x 230 mm x 110 mm
Power
- In: Panel Mounted inlet Straight (Plug) IP67
- Out: Panel Mounted Receptacle Straight (Skt) IP67
- 230V 50 Hz
- 6A Maximum (filter and shunt)
- Surge energy 420 joule
- Surge current 12kA
- MMOV technology
Interfaces
- Data: 8 wire
- Connectors: Circular size 14, 19 way IP66/67
- Data Input: PT02E14-19P
- Data Output: PT02E14-19S
- Line resistance 3.3 Ohm
- Surge current 40kA
- Band width 65 MHz
- Line capacitance 40 pF
- Response time <10 ps
- Maximum Leakage current <0.1uA
- RF: N female
- Tx path
- 90 volt clamping (50 watts TX max)
- Impedance 50 Ohm
- Max Let Through 200v (100v/microsec)
- Max Surge current (one shot) 40kA (8/20)
- Rx Path
- 90 volt clamping (50 watts RX max)
- Impedance 50 Ohm
- Max Let Through 200v (100v/microsec)
- Max Surge current (one shot) 40kA (8/20)
