MDS-030AAC Series
Medical AC-DC Adapter
The Delta MDS-030AAC Series series of external power supply comes with universal AC input at 85 Vac to 264 Vac.
Other features include low touch current, risk management report available and the electric shock protection comply with 2 × MOPP.
The MDS series is certified for EMC standards according to EN/BS EN 55011 for industrial, scientific and medical (ISM) radio-frequency equipment and EN/BS EN 55032 for Information Technology Equipment (ITE) radio-frequency equipment.
The MDS series come with both medical and ITE safety approvals including UL/cUL and IEC 60950-1 CB certification as a Limited Power Source (LPS), and CCC approval. Designs are fully compliant with RoHS Directive for environmental protection.
– MDS-030AAC05, 12, 15, 24 Meet Efficiency Level VI
– Safety Approvals to IEC 60601-1 3.1rd ed. & IEC 62368-1
– Compliant with IEC 60601-1-2 4th Ed. Requirements
– Meets Limited Power Source (LPS) requirements
– Low touch current. Suitable for type BF applications

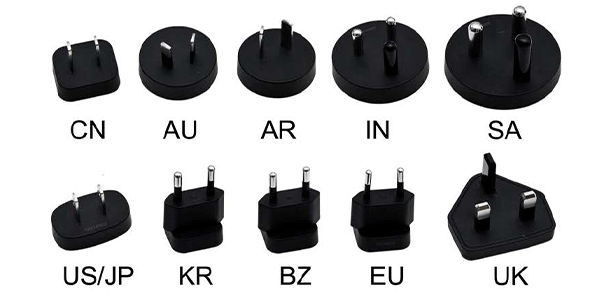

– Detachable AC plug with multiple country options
– IP22 ingress protection rating
– 2 × MOPP isolation
– 500K hours MTBF

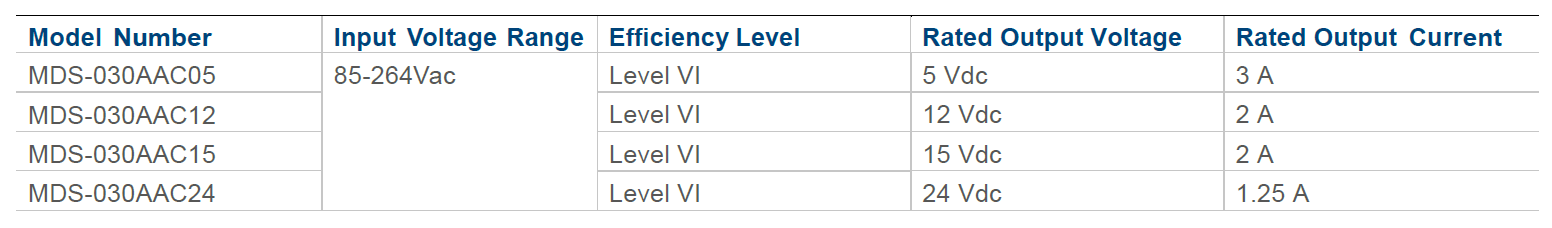

Available rated output voltage; 5Vdc, 12Vdc, 15Vdc and 24 Vdc
Model Variants:
- MDS-030AAC05
- MDS-030AAC12
- MDS-030AAC15
- MDS-030AAC24
