IMA 600 Watts Power Supply Series

The Delta IMA 600 Watts Power Supply Series is designed for Medical and Industrial applications.

Available in 12V, 24V and 48V.

Features:

●  Safety approval for Medical (IEC 60601-1-2), Industrial (IEC 62368) and IT
●  Wide operating input voltage range: 80 Vac to 275 Vac or 120 Vdc to 300 Vdc
●  Wide adjustable output voltage range (+/- 20%)
●  5 Vdc standby output
●  High efficiency: up to 94%
●  Size: 4 x 8 x 1.6 in (1U design)
●  Variable speed fan control
●  Low acoustic noise level of less than 38.5 dB(A)
●  Active current sharing
●  2 × MOPP
●  PMBus™ compatible for control, programming and monitoring
●  500,000 hour MTBF
●  Optional conformal coating
●  3 years warranty

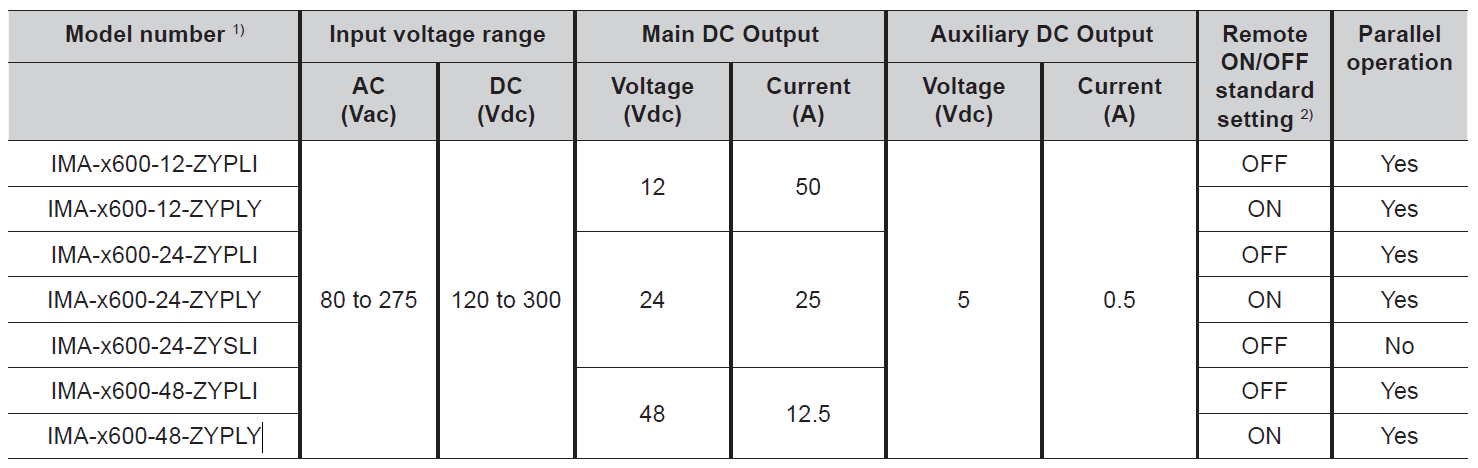

Model Variants:

• IMA-x600-12-ZYPLI
• IMA-x600-12-ZYPLY
• IMA-x600-24-ZYPLI
• IMA-x600-24-ZYPLY
• IMA-x600-24-ZYSLI
• IMA-x600-48-ZYPLI
• IMA-x600-48-ZYPLY
