IMA 1000 Watts Power Supply Series
For medical and industrial applications
This product is available from Milexia UK
The Delta IMA 1000 Watts Power Supply Series, for use in Medical and Industrial applications.
Features
● Safety approval for Medical (IEC 60601-1-2), Industrial (IEC 62368) and IT
● Wide operating input voltage range: 80 Vac to 275 Vac or 120 Vdc to 300 Vdc
● Wide adjustable output voltage range (+/- 20%)
● 5 Vdc standby output
● High efficiency: up to 94%
● Size: 5 x 8.25 x 1.6 in (1U design)
● Variable speed fan control
● Low acoustic noise level of less than 39 dB(A)
● Active current sharing
● 2 × MOPP
● PMBus™ compatible for control, programming and monitoring
● 500,000 hour MTBF
● Optional conformal coating
● 3 years warranty
Available in 12V, 24V and 48V.

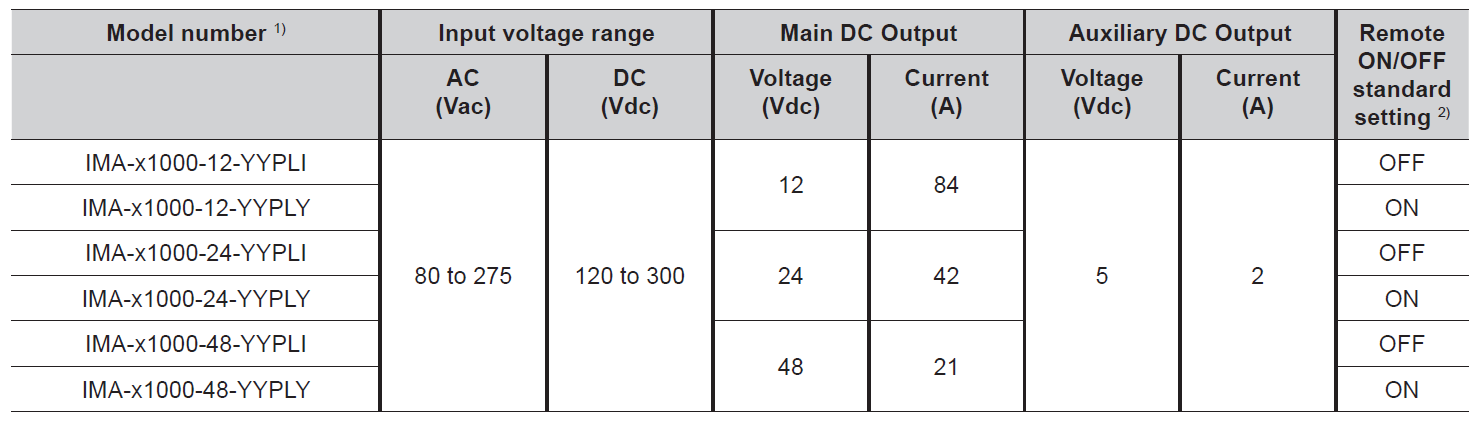

Model Variants:
- IMA-x1000-12-YYPLI
- IMA-x1000-12-YYPLY
- IMA-x1000-24-YYPLI
- IMA-x1000-24-YYPLY
- IMA-x1000-48-YYPLI
- IMA-x1000-48-YYPLY
