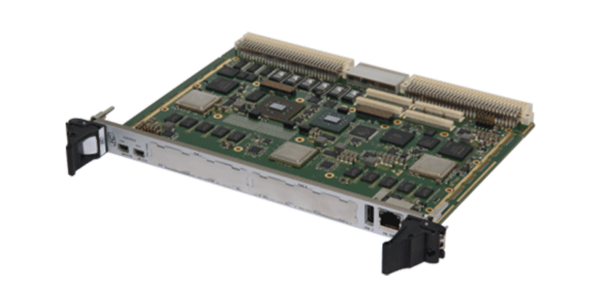

Interface Concept IC-PPC-VMEb
6U VME QorIQ Single Board Computer with on-board switch and FPGA
Este producto está disponible en Milexia Iberica
The Interface Concept IC-PPC-VMEb based on one or two QorIQ® T2081 (or T1042) processors, offers unparalleled performance to VME legacy applications and provides ruggedized and highly secure solutions.
Superseding our IC-De6-VMEb, it ensures compatibility with existing equipments while offering increased embedded computing power.
The IC-PPC-VMEb board provides a flexible combination of interfaces offering a highly versatile open platform in a single slot VME to optimize weight, size, power and cost.
This SBC has been designed to meet the needs of OEMs servicing the mil-aero and industrial market fields.
Features and variations
- 6U VME
- Single or Dual QorIQ® T2081/T1042
- up to 8 GB DDR3 with ECC
- user-programmable FPGA
- Giga Ethernet switch
- 1 * XMC slot, 1 * PMC/XMC slot
Technical Specs
- Processors/Memory: 1/2x QorIQ T2081 (1.8GHz quad-core) or T1042 (1.4GHz quad-core); up to 8GB DDR3-ECC/CPU.
- Networking: 7x GbE (2x front 1000BASE-T, 5x rear); L2+ switch.
- Expansion: XMC (PCIe x4), PMC/XMC (PCI/PCI-X/PCIe x4); open FPGA (SerDes/LVDS to HPC/FMC).
- I/O: USB2 x3, serials, GPIOs; VME64x optional; RTM available.
- Standards: 6U VME single-slot; air/extended/rugged/conduction-cooled.
- Environment: Coating optional/yes; airflow 1-5 m/s; 5-95% RH non-condensing.
